MIL-W-81822/4wire-PTFE/聚酰亚胺绝缘电线电缆
M81822/13-A2626轨距线是我们的钩上电线/引线线的一部分。M 81822/13-A26是一根26瓦的电线，由镀银的ETP纯铜导体和挤压的ETFE绝缘制成。这些电线的重量约为1.12磅/毫秒，用于航空航天和其他需要重量轻、紧凑型夹克衫直径公差和增强机械韧性的应用。这些电线在20°C时的大电阻为42.7，额定电压为300伏特，温度额定值为-55°C至150°C。

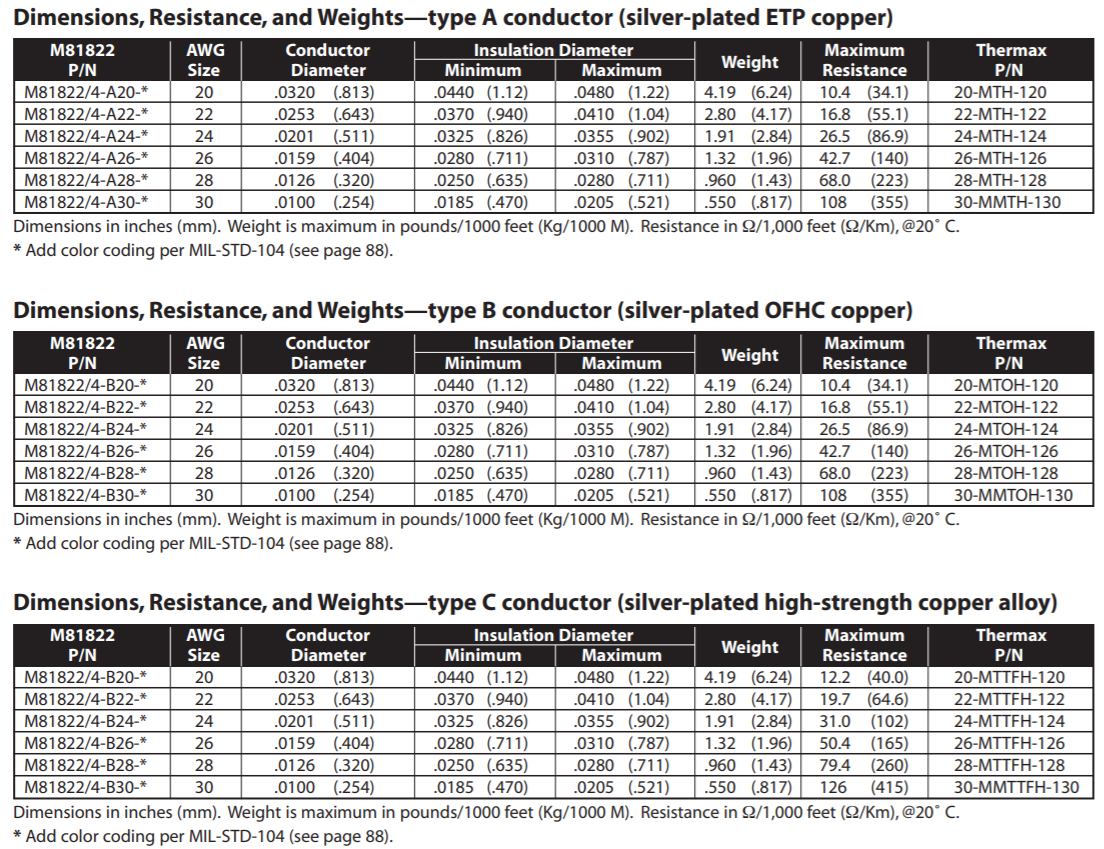

MIL-W-81822/4线有薄壁挤压聚四氟乙烯绝缘用聚酰亚胺面漆增加直通性和耐磨性。
它们都有用于绕丝应用的固体导体如背板接线，有三种选择导体材料。
性能:额定电压:300 v。
额定温度:-55至200˚C。
绝缘材料:薄壁聚酰亚胺挤压聚四氟乙烯表面涂层。
导体:A型:镀银ETP铜;B型:镀银OFHC铜;C型:镀银，强度高铜合金。
颜色:颜色编码为MIL-STD-104。
深圳市伟健电子科技有限公司
公司网址：www.wekorm.com
地址：深圳市龙岗区坂田街道五和社区创汇国际中心706
传真：0755-23941921
E-mali:simon@wekorm.com
联系人：臧宏刚 电话：15384495506（微信同步） QQ:2330292221
| MIL-W-81822/13-26-7=81822/13-26-7 |  26 |
| MIL-W-81822/4-30-1=81822/4-30-1 | 30 |
| MIL-W-81822/13-30-8=81822/13-30-8 | 30 |
| MIL-W-81822/3-26-9 Se AS 81822/3-26-9 | 26 |
| MIL-W-81822/3-30-6=81822/3-30-6 | 30 |
| MIL-W-81822/13-30-9=81822/13-30-9 | 30 |
| MIL-W-81822/6-30-9=81822/6-30-9 | 30 |
| MIL-W-81822/3-22-9=81822/3-22-9 | 22 |
| MIL-W-81822/13-26-9=81822/13-26-9 | 26 |
| MIL-W-81822/13-22-9=81822/13-22-9 | 22 |
| MIL-W-81822/13-24-9 Se AS 81822/13-24-9 | 24 |
| MIL-W-81822/6-24-9 Se AS 81822/6-24-9 | 24 |
| MIL-W-81822/13-30-0 Se AS 81822/13-30-0 | 30 |
| MIL-W-81822/6-30-9=81822/6-30-9 | 30 |
| MIL-W-81822/13-30-5 Se AS 81822/13-30-5 | 30 |
| MIL-W-81822/13-30-4=81822/13-30-4 | 30 |
| MIL-W-81822/6-30-1=81822/6-30-1 | 30 |
| MIL-W-81822/13-30-9=81822/13-30-9 | 30 |
| MIL-W-81822/13-26-9=81822/13-26-9 | 26 |
| Mil-W-81822/3-24-9=81822/3-24-9 | 24 |
| MIL-W-81822/6-24-9 Se AS 81822/6-24-9 | 24 |
| MIL-W-81822/6-22-9 Se AS 81822/6-22-9 | 22 |
| MIL-W-81822/6-30-9=81822/6-30-9 | 30 |
| MIL-W-81822/13-30-2 Se AS 81822/13-30-2 | 30 |
| MIL-W-81822/6-28-9 | SAE AS 81822/6-28-9 | 28 |
| MIL-W-81822/13-20-9 | SAE AS 81822/13-20-9 | 20 |
| MIL-W-81822/3-26-0 | SAE AS 81822/3-26-0 | 26 |
| MIL-W-81822/6-30-1 | SAE AS 81822/6-30-1 | 30 |
| MIL-W-81822/3-30-9 | SAE AS 81822/3-30-9 | 30 |
| MIL-W-81822/6-30-9 | SAE AS 81822/6-30-9 | 30 |
| MIL-W-81822/3-28-9 | SAE AS 81822/3-28-9 | 28 |
| MIL-W-81822/3-30-9 | SAE AS 81822/3-30-9 | 30 |
| MIL-W-81822/6-28-5 | SAE AS 81822/6-28-5 | 28 |
| MIL-W-81822/13-26-2 | SAE AS 81822/13-26-2 | 26 |
| MIL-W-81822/13-24-9 | SAE AS 81822/13-24-9 | 24 |
| MIL-W-81822/6-26-9 | SAE AS 81822/6-26-9 | 26 |
| MIL-W-81822/3-30-6 | SAE AS 81822/3-30-6 | 30 |
| MIL-W-81822/13-28-9 | SAE AS 81822/13-28-9 | 28 |
| MIL-W-81822/3-30-5 | SAE AS 81822/3-30-5 | 30 |
| MIL-W-81822/3-28-6 | SAE AS 81822/3-28-6 | 28 |
| MIL-W-81822/6-30-5 | SAE AS 81822/6-30-5 | 30 |
| MIL-W-81822/3-26-9 | SAE AS 81822/3-26-9 | 26 |
| MIL-W-81822/13-30-6 | SAE AS 81822/13-30-6 | 30 |
| MIL-W-81822/6-30-2 | SAE AS 81822/6-30-2 | 30 |
| MIL-W-81822/3-30-0 | SAE AS 81822/3-30-0 | 30 |
| MIL-W-81822/6-18-1 | SAE AS 81822/6-18-1 | 18 |
| MIL-W-81822/6-22-1 | SAE AS 81822/6-22-1 | 22 |
| MIL-W-81822/3-26-2 | SAE AS 81822/3-26-2 | 26 |
| MIL-W-81822/3-26-7 | SAE AS 81822/3-26-7 | 26 |
| MIL-W-81822/6-24-5 | SAE AS 81822/6-24-5 | 24 |
|
|
